HY75GTV
| Model | HY75GTV |
||
| Resolution | UHD 3840*2160 | ||
| Android Features | |||
| Chipset | Realteck with GoogleTV 3.0 ver | ||
| Solution (OS) | Android 11.0 | ||
| CPU | ARM Cortex-A55 Quad-Core /1.5GHz | ||
| GPU | G52 MP2 Dual-Core | ||
| ROM/eMMC | 16GB | ||
| RAM/DDR | 2GB | ||
| (Selected App) Google Play store support for TV | Yes | ||
| I/O Ports | Qty | ||
| RF | Yes | 75 ohms | |
| AV IN | 1 | 3.5mm jack | |
| USB | 2 | V-2.0 | |
| HDMI | 3 | 1.4 (1 with ARC function) | |
| LAN | 1 | RJ-45 | |
| Wi-Fi (2T2R) | Yes | 2.4 GHz & 5.8GHz | |
| Optical out | Yes | - | |
| Ear Phone/Audio out | 1 | Mini (3.5mm) | |
| FEATURES | |||
| Screen Size | 191 Cm | ||
| Open Cell | BOE/LG.. | ||
| BLU Power | 270 | ||
| Contrast Ratio(Dynaminc) | 2,00,000:1 | ||
| Brightness | > 350 nits | ||
| Viewing Angle | 178° H/178° V | ||
| Response Time | 8 ms | ||
| Main Board | 2in1 Board + PS | ||
| Speaker | 8E/12W Box SPK | ||
| Preload Apps | Yes | ||
| HDR 10 Support | Yes | ||
| Screen cast | Yes | ||
| Bluetooth(Ver. 5.1) | Yes | ||
| Google voice assistance function | Yes | ||
| Google user login for TV | Yes | ||
| Dolby | Yes (Dolby vision and ATMOS) | ||
| OSD Language | English | ||
| Video Input - RF | |||
| Color System | PAL, SECAM | ||
| Video | 1Vp-p @75 Ohm +5% | ||
| Audio | 500mV RMS | ||
| Video Input - CVBS | |||
| Sync | H:30-75KHz, V:56-75Hz | ||
| Video | 0.7Vp-p @ 75Ohm | ||
| Resolution | Up to 1920*1080@60Hz | ||
| Video Input - HDMI | |||
| Video | Standard TDMS format | ||
| Resolution | 480i, 480p, 576i, 576p, 720p,1080i,1080p | ||
| USB Multimedia Playback Format | |||
| Media | File | Video | Audio |
| Movie | .avi | MJPEG | MP3, AAC, MP2, PCM |
| MPEG-2, MPEG-4, H.264 | |||
| .mp4 | MPEG-2, MPEG-4, H.264 | ||
| .ts/.tr | MPEG-2, H.264 | ||
| .mkv/mov | MPEG-2, H.265 | ||
| .mpg | MPEG-2, H.264 | ||
| .dat | MPEG-1 | MP2 | |
| .vob | MPEG-2 | ||
| .rm/.rmvb | RV8, RV9, RV10 | COOK | |
| Music | .mp3 | - | MP3 |
| .m4a/.aac | - | AAC | |
| Photo | .jpg/.jpeg | Progressive JPEG | Max Resulation 1024*768 |
| Baseline JPEG | Max Resulation 15360*6400 | ||
| .bmp | Max Resulation 9600*6400 | ||
| .png | Non-Interlaced | Max Resulation 9600*6400 | |
| Interlaced | Max Resulation 1200*800 | ||
| Text | .txt | ANSI/UNICODE GB/UTF8 | File Size : 1MB max |
| Input Electrical Specifications | |||
| Voltage | 100~240V AC | ||
| Current (AC) | <1.5A max | ||
| Frequency | 50Hz/60Hz +5% | ||
| Inrush Current (Cold Start) |
80A type peak,230V ac | ||
| Efficiency (full load) | 80% (full load with 230Vac) | ||
| Leakage Current | Less than 0.5mA, 230Vac input | ||
| Standby Power Loss | < 0.5W 230Vac input and no load | ||
| Input Fuse | T5.5 AL/250Vac | ||
| Max Power Consumption | 300W max | ||
| Weight & Size Specifications | |||
| Net Weight | 28.7Kgs (Approx.) | ||
| Gross weight | 38.0 kg (approx.) | ||

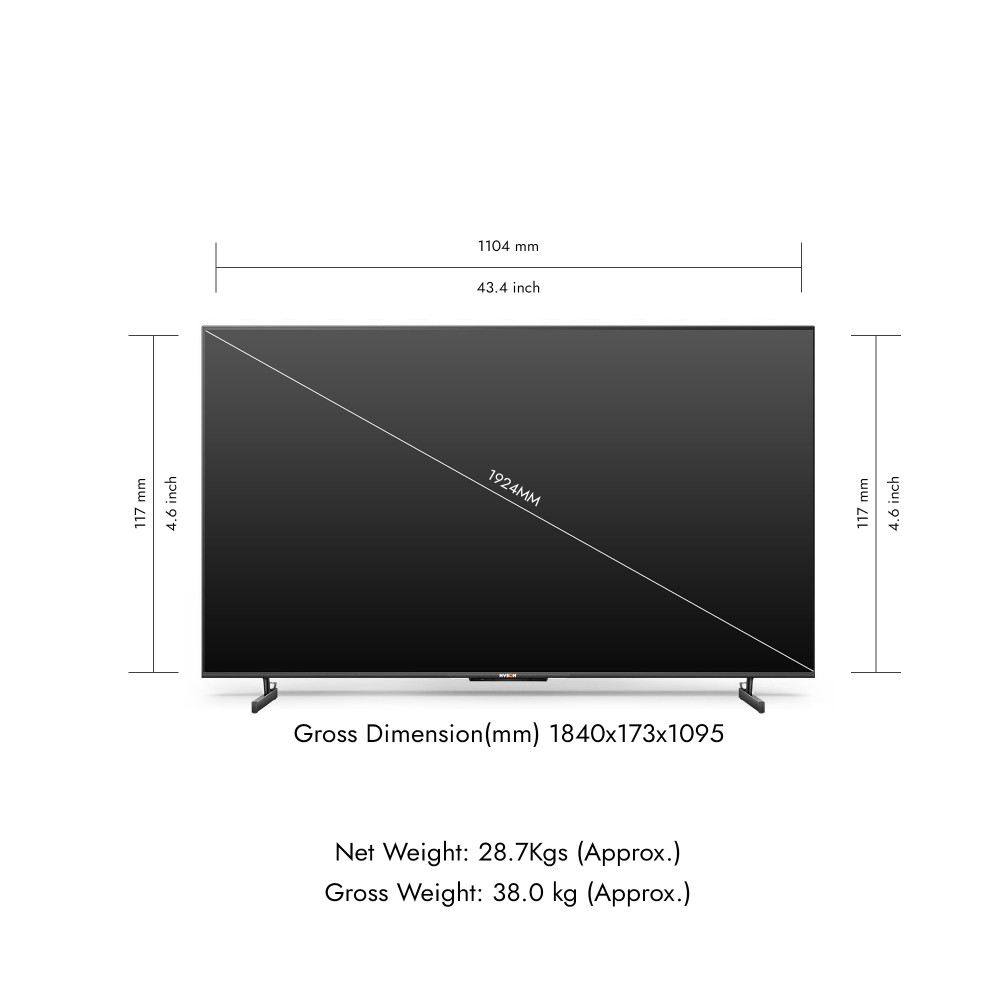

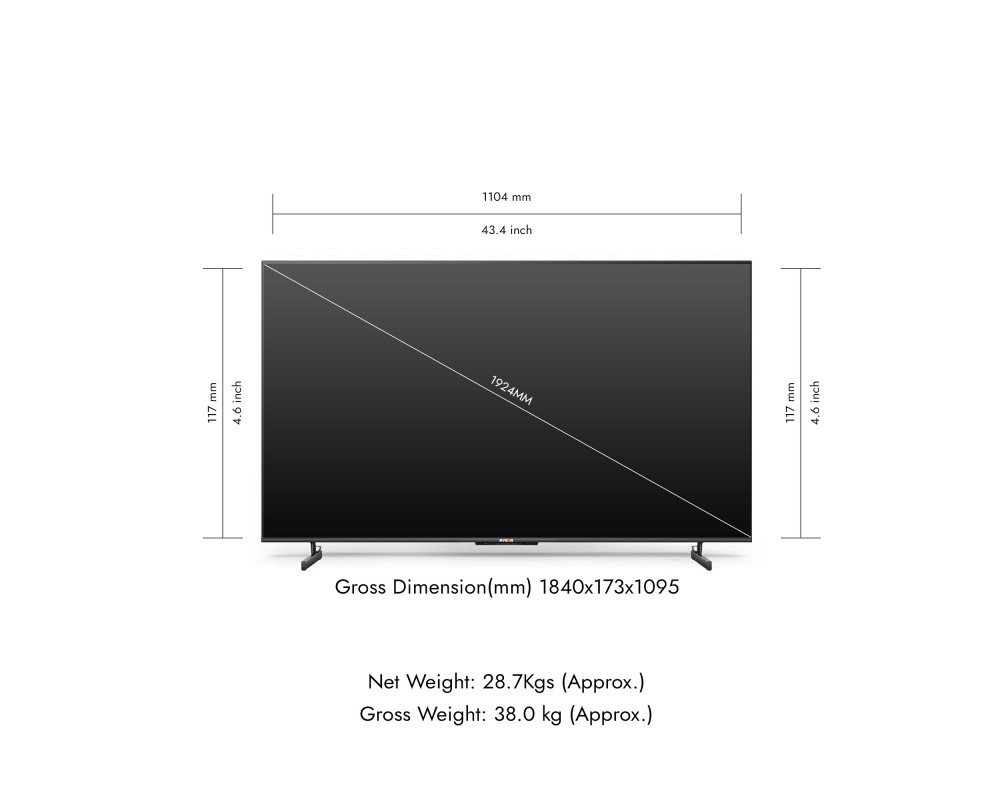

| Net Dimension(mm) | 1924 x 1104 x 117 | ||
| Gross Dimension(mm) | 1840x173x1095 | ||
